Sensors |

|
|

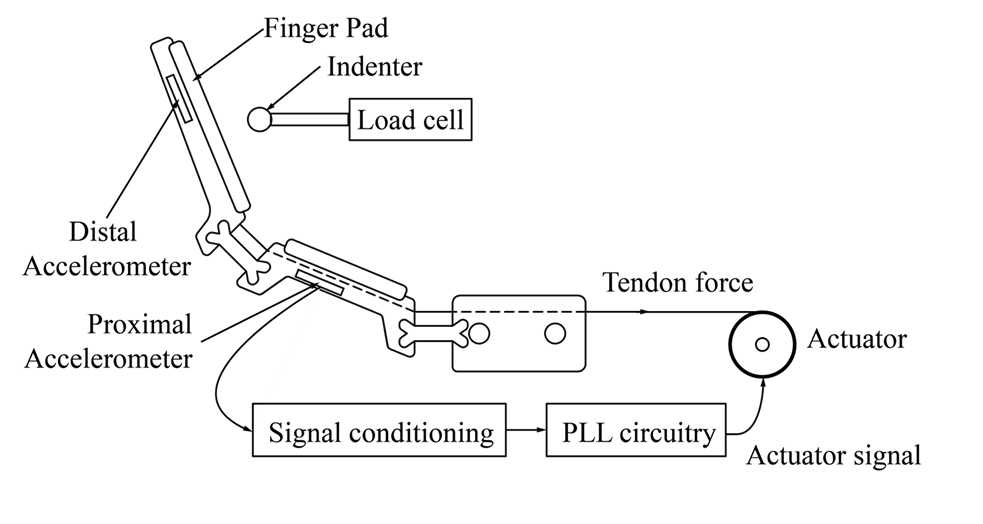

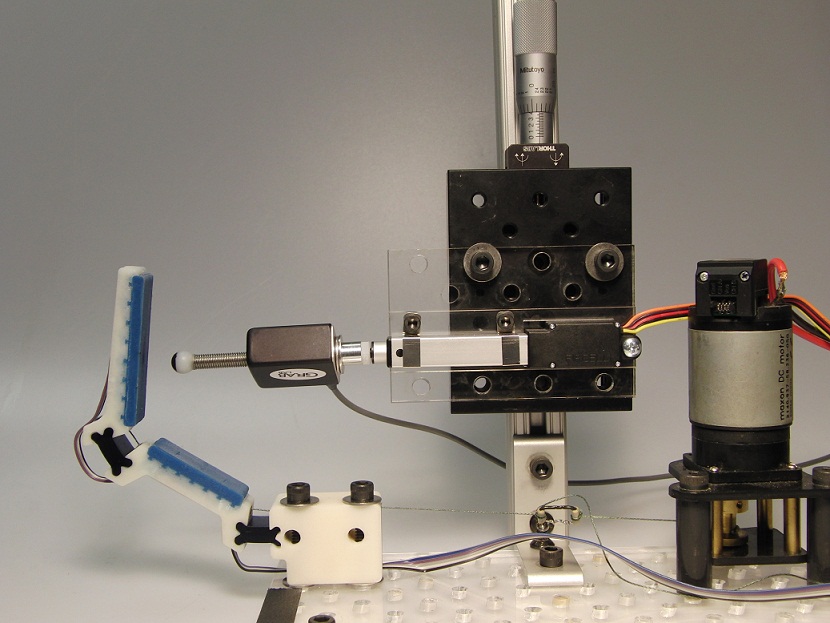

We have utilized Shape Deposition Manufacturing in much of the robot hand research we have undertaken and explored the integration of sensors directly into the structures of the hands. These include Hall-effect sensors for joint angle sensing, embedded strain gauges for 3 axis force measurements, optical reflectance sensors for tactile sensing, and piezoelectric polymers and accelerometers for contact detection. Our most recent work has involved developing a low cost contact sensor based upon tracking the resonant frequency of the compliant digits using an embedded accelerometer.
Sample Publications:
Spencer B. Backus and Aaron M. Dollar
Robust, Inexpensive Resonant Frequency Based Contact Detection for Robotic Manipulators, proceedings of the 2012 IEEE International Conference on Robotics and Automation (ICRA 2012), Minneapolis, MN, May 14-18, 2012
Aaron M. Dollar, Christopher R. Wagner, and Robert D. Howe
Embedded Sensors for Biomimetic Robotics via Shape Deposition Manufacturing, proceedings of the first IEEE / RAS-EMBS International Conference on Biomedical Robotics and Biomechatronics (BioRob), selected for a single-track podium presentation, Pisa, Italy, Feb. 20-22, 2006.
All Sensors Publications >>
|
