Nanophotonics
Micro lasers
Confinement and manipulation of light in microcavities is important for a wide range of research
areas and applications, e.g., cavity quantum electrodynamics or novel light sources. Efficient
confinement of light in optical microcavities requires recirculation of that light. The price of this
efficiency is usually isotropic emission, making extraction and collection of light highly
inefficient. We have utilized cavity shape variation and phase space engineering to achieve
simultaneously strong light confinement and directional output.
 |
 |
 |
LEFT: A scanning electron micrograph of a GaAs microdisk
whose shape is described by the limacon of Pascal.
Although the intracavity ray dynamics is predominantly
chaotic, it produces universal directionality of all lasing
modes. RIGHT: Angular distribution of emission intensity for
two lasing modes. |
Directional emission of light is
obtained from a mushroom shaped
microcavity where the differential
trick is to let the light escape the
cavity but subsequently re-enter in
order to focus it to specific directions. |
Nano lasers
We recently developed a subwavelength semiconductor disk laser which can be fabricated using
standard photolithographic techniques and wet chemical etching, making it suitable for mass
production. Previous fabrication of nanolasers used electron-beam lithography and dry etching, a
much more expensive approach. Subwavelength laser sources are potentially useful for
nanophotonic circuits, on-chip optical interconnects, and pinpoint-accuracy biochemical sensing.
 |
 |
LEFT: Tilt-view scanning electron microscope
image of a GaAs disk on top of an AlGaAs
pedestal. The disk diameter is 627 nm and the
disk thickness is 265 nm. InAs quantum wells
embedded in the GaAs disk provides optical
gain for lasing under optical pumping. The
laser emission wavelength (in vacuum) is 870
nm. RIGHT: Spatial field profile of the lasing
mode. The number of wavelengths (in GaAs)
that fit the disk circumference is 4. |
Nanoplasmonics

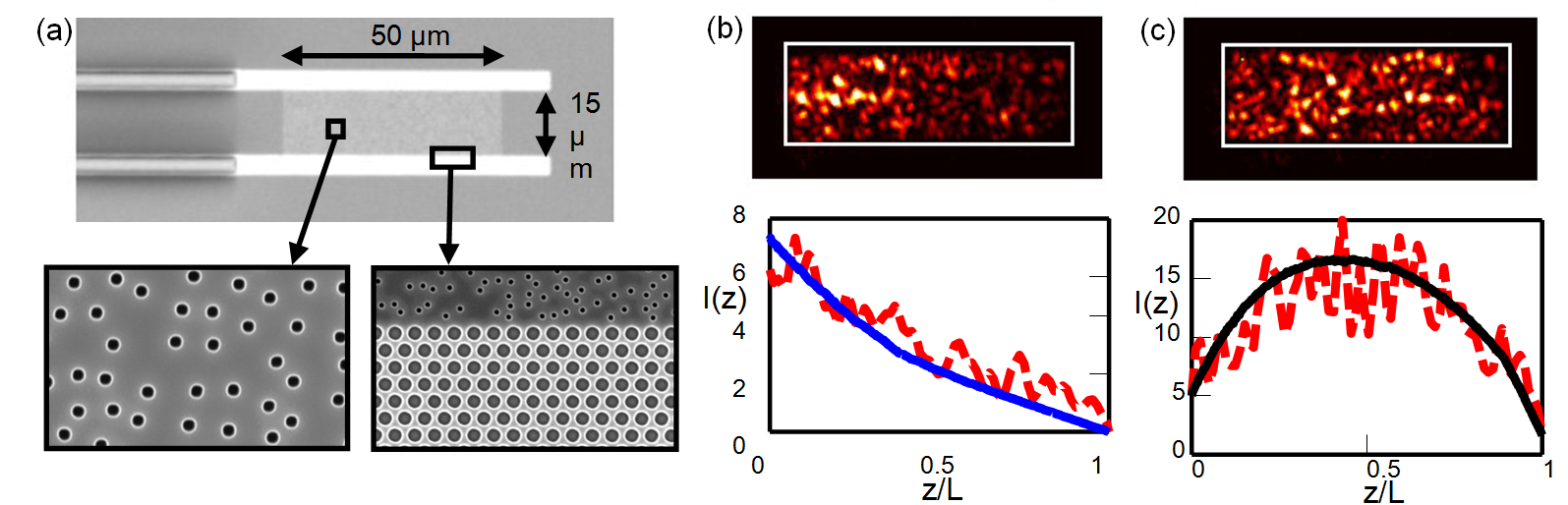

We investigate transport and localization of optical excitations in metal-dielectric
nanocomposites. Utilizing near-field scanning optical microscopy, we have probed the near-field
intensity correlations and fluctuations in semicontinuous silver films. As the surface coverage of
silver increases, the semicontinuous metal film undergoes a transition from a dielectric
waveguide below the percolation threshold to a metallic waveguide above the percolation
threshold. At the percolation threshold, substantial structural inhomogeneities result in strong
localization of surface plasmons. Well above the percolation threshold, the incident light excites
propagating surface plasmon polaritons. Both propagation and localization regimes have
important applications. In the former, electromagnetic energy and information can be transferred
over long distances, whereas the localization of electromagnetic fields in nano scales can
enhance various linear and nonlinear optical processes.
 |
Spatial distribution of electromagnetic field intensity
across a percolating metal film measured by a near-field
scanning optical microscope. The hot spots show strong
localization of surface plasmons.
|
